Combine bar and line charts to visualize multiple data series with different representations.

Usage

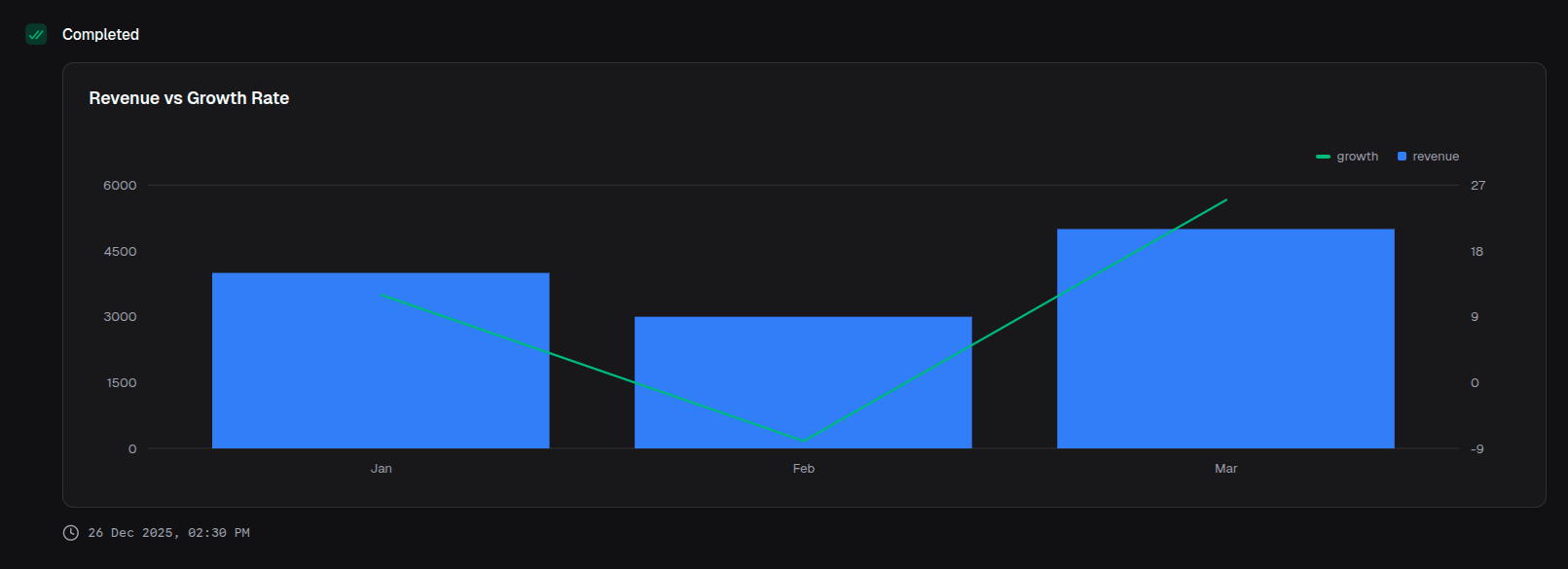

Combo chart

const chart = block.comboChart({
  title: 'Revenue vs Growth Rate',
  data: [
    { month: 'Jan', revenue: 4000, growth: 12 },
    { month: 'Feb', revenue: 3000, growth: -8 },
    { month: 'Mar', revenue: 5000, growth: 25 },
  ],
  index: 'month',
  barSeries: {
    categories: ['revenue'],
    colors: ['blue'],
  },
  lineSeries: {
    categories: ['growth'],
    colors: ['emerald'],
  },
})

Props

Prop	Description	Type	Required	Default
title	Chart title displayed above the chart	`string`	No	`undefined`
description	Description text below the title	`string`	No	`undefined`
data	Array of data objects to visualize	`T[]`	Yes	—
index	Key of the data object for the x-axis	`keyof T`	Yes	—
barSeries	Configuration for the bar series	`BarSeriesConfig`	Yes	—
lineSeries	Configuration for the line series	`LineSeriesConfig`	Yes	—
xAxisLabel	Label for the x-axis	`string`	No	`undefined`
showXAxis	Whether to display the x-axis	`boolean`	No	`true`
showGridLines	Whether to display grid lines	`boolean`	No	`true`
showTooltip	Whether to display tooltips on hover	`boolean`	No	`true`
showLegend	Whether to display the legend	`boolean`	No	`true`
startEndOnly	Show only start and end labels on x-axis	`boolean`	No	`false`
intervalType	X-axis tick placement logic	`'equidistantPreserveStart' \| 'preserveStartEnd'`	No	`'equidistantPreserveStart'`

BarSeriesConfig

Prop	Description	Type	Required	Default
categories	Keys of the data object for bar values	`(keyof T)[]`	Yes	—
colors	Colors for the bar series	`ChartColor[]`	No	`['blue']`
yAxisLabel	Label for the bar y-axis	`string`	No	`undefined`
showYAxis	Whether to display the bar y-axis	`boolean`	No	`true`
stackType	How bars are stacked	`'default' \| 'stacked'`	No	`'default'`
valueFormat	Format configuration for bar values	`ValueFormat`	No	`undefined`

LineSeriesConfig

Prop	Description	Type	Required	Default
categories	Keys of the data object for line values	`(keyof T)[]`	Yes	—
colors	Colors for the line series	`ChartColor[]`	No	`['blue']`
yAxisLabel	Label for the line y-axis	`string`	No	`undefined`
showYAxis	Whether to display the line y-axis	`boolean`	No	`true`
valueFormat	Format configuration for line values	`ValueFormat`	No	`undefined`

Returns

Returns a ComboChartOutput object that can be returned from a handler or passed to io.message().

Examples

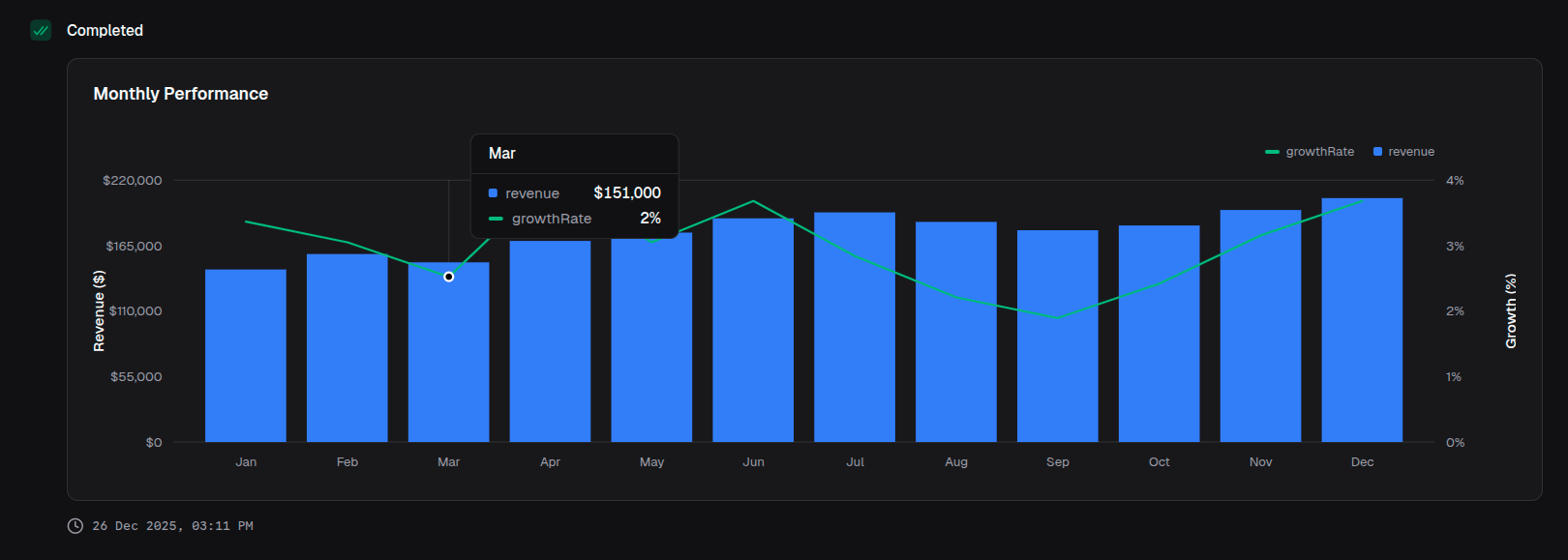

Revenue with growth percentage

Combo chart

return block.comboChart({
  title: 'Monthly Performance',
  data: performanceData,
  index: 'month',
  barSeries: {
    categories: ['revenue'],
    colors: ['blue'],
    yAxisLabel: 'Revenue ($)',
    valueFormat: { type: 'currency', currency: 'USD' },
  },
  lineSeries: {
    categories: ['growthRate'],
    colors: ['emerald'],
    yAxisLabel: 'Growth (%)',
    valueFormat: { type: 'percentage' },
  },
})

Stacked bars with trend line

return block.comboChart({
  title: 'Sales Analysis',
  data: salesData,
  index: 'quarter',
  barSeries: {
    categories: ['online', 'retail'],
    colors: ['blue', 'violet'],
    stackType: 'stacked',
  },
  lineSeries: {
    categories: ['target'],
    colors: ['amber'],
  },
})

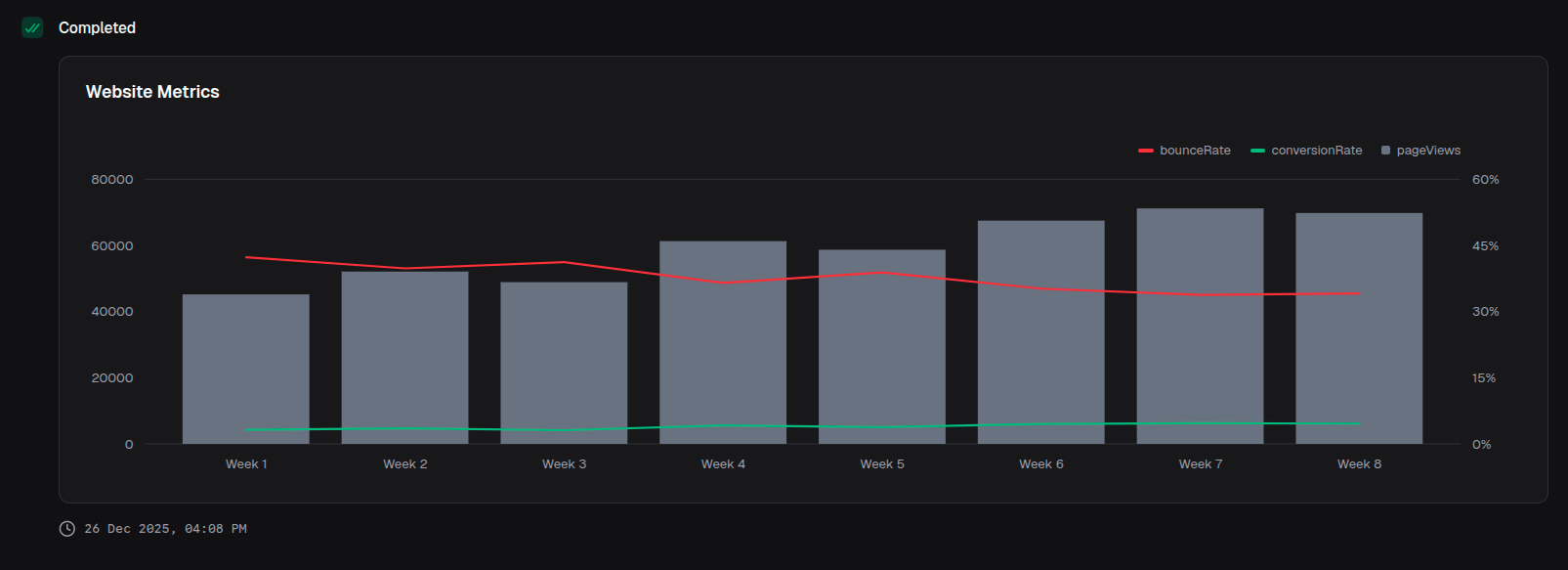

Multiple lines with bars

return block.comboChart({
  title: 'Website Metrics',
  data: metricsData,
  index: 'week',
  barSeries: {
    categories: ['pageViews'],
    colors: ['gray'],
  },
  lineSeries: {
    categories: ['bounceRate', 'conversionRate'],
    colors: ['red', 'emerald'],
    valueFormat: { type: 'percentage' },
  },
})
